รายละเอียดสินค้า:
|
| สูงสุด น้ำหนักตัวอย่าง:: | 500 กิโลกรัม | ช่วงระยะเวลาพัลส์ (MS):: | 3~20ms |
|---|---|---|---|
| ช่วงการเร่งความเร็ว (M/S2):: | 500 กรัม | ขนาดโต๊ะ:: | 120*120 ซม. |
| น้ำหนักเครื่องจักร: | 8500kg | ไฮไลต์:: | ระบบทดสอบการกระแทกคลื่นไซนัสครึ่งหนึ่งระบบทดสอบการช็อตการเร่งความเร็ว 500 กิโลกรัมระบบทดสอบการเร่งคว |
| เน้น: | Half Sinusoidal Wave Shock Test System,500kg Acceleration Shock Testing System,500g Acceleration Shock Testing System |
||

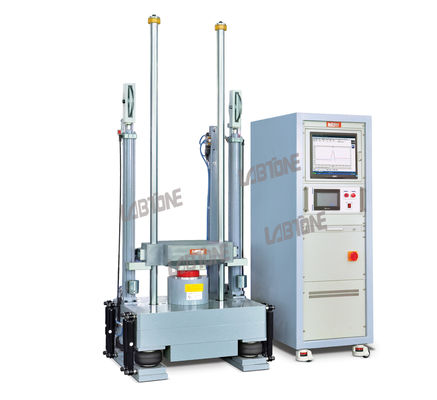

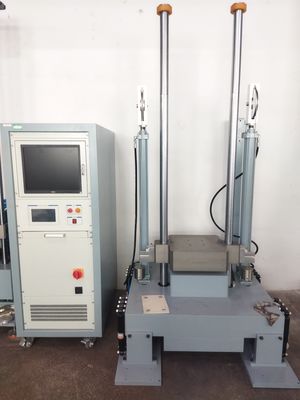

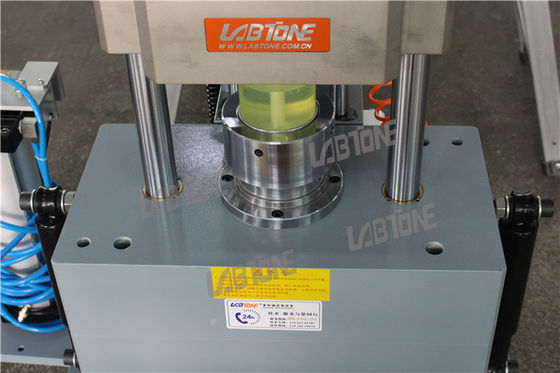

Shock Test Systems include a seismic base, a table, a lifting system, guide columns, a braking system, shock pulse generators, and control console.
The test specimen is mounted on the table, The table is dropped onto the base and is stopped by a braking system after it rebounds from the table
Machine control functions and brake pressurization adjustments are made through the computer system
Specifications
| Model | SKT50 | SKT100 | SKT200 | SKT300 | SKT500 | SKT1000 | SKT1500 | |
| Table size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | |
| Maximum Specimen Weight(Kg) | 50 | 100 | 200 | 300 | 500 | 1000 | 1500 | |
| Max acceleration(G) | half sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 |
| saw-tooth waveform | 100 | 100 | 100 | 100 | 100 | 100 | 100 | |
| square | 100 | 100 | 100 | 60 | 50 | 50 | 50 | |
| Pulse Duration (ms) | half sine | 30~1 | 30~2 | 30~2 | 20~3 | 20~3 | 20~3 | 20~3 |
| saw-tooth waveform | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | 18~6 | |
| square | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | 12~6 | |
| Machine Dimension(cm) | 82x90x195 | 120x105x245 | 130x120x260 | 150x130x260 | 200x160x300 | 230x180x310 | 250x250x310 | |
| Controller cabinet Dimension(cm) | W55 x D50 x H80 | |||||||
| Machine Weight(Kg) | 1050 | 2000 | 3200 | 4200 | 8500 | 15500 | 21500 | |
| Power supply | 3-phase AC380V 50/60Hz 0.5~0.8MPa | |||||||
| Conforming standards |
GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL |
|||||||
Company profile:
Labtone Test Equipment Co., Ltd. is a +22 year China manufacture of reliable, cost-effective equipment. Our superior products mainly include Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started a business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument, and industrial machinery applications. Our experience and commitment to new product development have resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literature, manuals, and guides as well as having qualified staff and experts to solve your problems.
We sincerely invite you to visit our factory.
