รายละเอียดสินค้า:
|
| ชื่อ: | เครื่องทดสอบแรงกระแทกแบบหลายจุดก่อสร้างอย่างง่ายตรงตามมาตรฐาน MIL-STD-810E IEC 60068-2-27 | ขนาดตาราง: | 50 x 60 ซม |
|---|---|---|---|
| น้ำหนักสูงสุดของชิ้นงานทดสอบ (กก.): | 50 กิโลกรัม | ชีพจรช็อก: | ครึ่งไซน์ |
| การเร่งความเร็ว: | 600g (6000m/s2) | ช่วงระยะเวลาของพัลส์ (มิลลิวินาที): | 1-30ms |
| เน้น: | MIL-STD-810E shock test system,IEC 60068-2-27 shock tester,multi-drop shock test equipment |
||

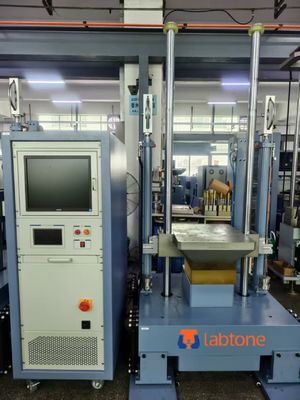

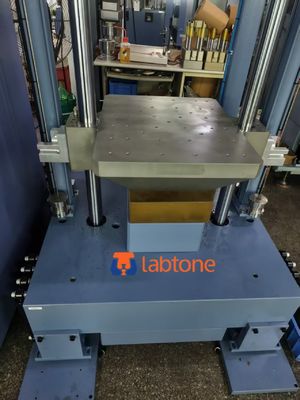

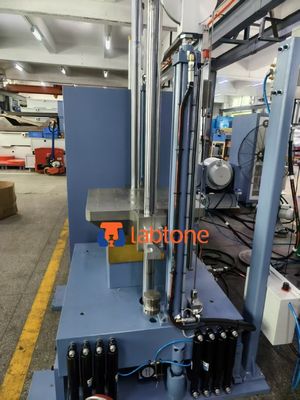

Simple Construction Multi-Drop Shock Testing System Meets MIL-STD-810E IEC 60068-2-27
Shock Test System
Muti-Shock Test systems can be equipped with optional shock pulse programmers to generate a wide range of half sine, trapezoidal, and terminal peak sawtooth shock pulses
1) User-friendly touching screen operation.Half sine, square waveform shock pulse programmers.High rigidity shock tables.
2) Half sine, square waveform shock pulse programmers.
3) High rigidity shock tables.
4) A full range of safety features.
5) Apply air and hydraulic pressurization, strong friction brake avoiding secondary shock .
6) Apply air spring suspension, hydraulic damping shockproof system, no shock impact on the surrounding, without foundation
Standard Shock Test system
| Model | SKT30 | SKT50 | SKT100 | SKT200 | SKT300 | SKT600 | SKT1000 | ||
| Table Size (cm) | 40 x 40 | 50 x 60 | 70 x 80 | 100 x 100 | 120 x 120 | 150 x 150 | 200 x 200 | ||
| Max. Specimen Weight(kg) | 30 | 50 | 100 | 200 | 300 | 600 | 1000 | ||
|
Max. Acceleration (G) |
Half Sine | 600 | 600 | 600 | 500 | 500 | 300 | 300 | |
| Saw-tooth | 100 | 100 | 100 | 100 | 100 | 100 | 100 | ||
| Square | 150 | 150 | 150 | 100 | 100 | 100 | |||
|
Pulse duration (ms) |
Half Sine | 30—0.5 | 30～1 | 30～1 | 30～2 | 20～3 | 20～3 | 20～3 | |
| Saw-tooth | 18～6 | 18～6 | 18～6 | 18～6 | 18～6 | 16～6 | 18～6 | ||
| Square | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | 30～6 | |||
| Controller cabinet dimension(cm) | W55*D50*H80 | ||||||||
| Machine weight(Kg) | 1900 | 2300 | 3200 | 4200 | 8500 | 15500 | 21500 | ||
| Power supply | 3(phase) AC380V 50/60Hz Compressed air 0.5～0.8MPa | ||||||||
| Standards | GB/T2423-2008 GJB1217 GJB360.23 GJB150 GJB548 MIL-STD-202F IEC-68-2-27 MIL-STD-883E MIL-STD-810F ISTA UL | ||||||||
High Perfermance Shock Test System
| Model | HSKT10 | HSKT10D | HSKT15 | HSKT30 | HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
|
Max. Payload (kg) |
10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 |
|||
Our Service
Pre-Sales Service
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
