รายละเอียดสินค้า:
|
| ชื่อ: | เครื่องทดสอบการสั่นสะเทือนของโทรศัพท์มือถือทำการทดสอบการสั่นสะเทือนแบบสุ่มตรงตามมาตรฐาน IEC ISTA MIL | จัดอันดับกำลังสูงสุด: | 2000kg.f(20kN) |
|---|---|---|---|
| ช็อกฟรอซ: | 4000kg.f(40kN) | การกำจัด: | 51 มม. |
| ความเร็วสูงสุด: | 2.0m/s | วิธีการทำความเย็น: | ระบายความร้อนด้วยอากาศ |
| สูงสุด การเร่งความเร็ว: | 100 กรัม | เกราะ: | φ240 |
| การบริโภคสูงสุด: | 8kW | ||
| เน้น: | Vibration testing machine for IEC compliance,Vibration tester with multiple displacement options,ISTA MIL STD vibration testing equipment |
||

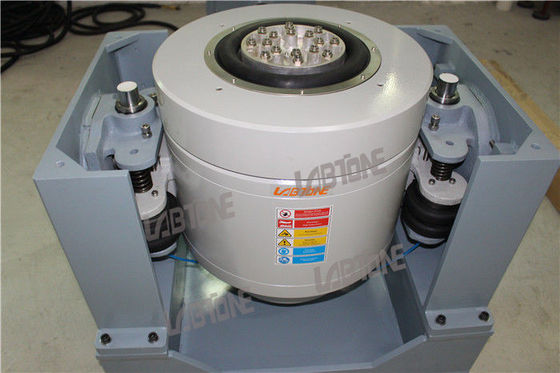

Mobile Phone Vibration Test Machine Performs Random Vibration Test Meet IEC ISTA MIL STD
Vibration Test Machine Specification:
|
Model
|
EV103
|
EV203
|
EV106
|
EV206
|
EV210
|
EV220
|
|
Frequency(Hz)
|
2-4000
|
2-2500
|
2-3000
|
2-3000
|
2-3000
|
2-2500
|
|
Max Exiting Force(kg.f)
|
300
|
300
|
600
|
600
|
1000
|
2000
|
|
Max. Displacement
(mmp-p)
|
25
|
38
|
25
|
50
|
50
|
50
|
|
Max. Acceleration(g)
|
100
|
100
|
100
|
100
|
100
|
100
|
|
Max. Velocity(cm/s)
|
200
|
120
|
180
|
200
|
200
|
200
|
|
Payload(kg)
|
110
|
120
|
200
|
200
|
300
|
400
|
|
Armature Mass(kg)
|
3
|
3
|
6
|
6
|
10
|
20
|
|
Armature Diameter(mm)
|
φ150
|
φ150
|
φ200
|
φ200
|
φ240
|
φ320
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Vibration Generator Weight(kg)
|
460
|
460
|
720
|
920
|
1100
|
1600
|
|
Vibration Generator Dimension L*W*H(MM)
|
750*560*670
|
750*555*670
|
800*600*710
|
800*600*710
|
845*685*840
|
1200*870*1100
|
|
Power Amplifier
|
Amp3k
|
Amp3k
|
Amp6k
|
Amp6k
|
Amp12k
|
Amp22k
|
|
Cooling Method
|
Forced Air Cooling
|
|||||
|
Power Amplifier Weight(kg)
|
250
|
250
|
320
|
320
|
350
|
500
|
|
Power Amplifier Dimension L*W*H(MM)
|
800*550*1250
|
|||||
|
Utility Requirements
|
3-phase AC380V ±10% 50Hz
|
|||||
|
Aggregate Capacity(KW)
|
8
|
9
|
18
|
20
|
25
|
35
|
Size(mm): 300 x 300-1500x1500
Material: Aluminium /Magnesium
Expansion platform is made of magnesium alloy to provide expansion for the armature. With Reasonable and scientific design, the platform can achieve a testing frequency of 2 kHz. Specific microstructure provides reasonable vibration damping, and minimizes the amplification factor of high frequency resonance.
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Company Profile
Labtone Test Equipment Co., Ltd. is a +15 year China manufacture of reliable, cost-effective equipments. Our superior products mainly include: Vibration Test Systems, Shock Test Systems, Bump Test Systems, Drop Tester, Packaging Transportation Simulators, and Combined Environmental Test Chambers.
Labtone started business in 2002 in a plant located in Shenzhen and moved to our new, expanded 6,000 square meter facility in Dongguan, Guangdong in 2015. Today, our products are found around the world in electronics, automotive, aerospace, telecommunication, optoelectronics instrument and industrial machinery applications. Our experience and commitment to new product development has resulted in products that are easy to use, accurate and designed for decades of service.
Labtone products carry a one-year(12months) warranty. We provide comprehensive factory services and supports, technical literatures, manuals and guides as well as having qualified staffs and experts to solve your problems.
We sincerely invite you to visit our factory.
Vibration Test machine performs the vibration test for Mobile Phone, Please contact us for details. Thanks!
