รายละเอียดสินค้า:
|
| ลดความสูง: | 0-1200มม | น้ำหนักของชิ้นงานทดสอบ: | 500 กิโลกรัม |
|---|---|---|---|
| มิติข้อมูลตัวอย่าง: | 1200*1200*1200มม | วิธีการวาง: | หน้าเหลี่ยมนางฟ้า |
| มิติของเครื่องจักร: | 2100*1700*2800มม | น้ำหนักเครื่องจักร: | 4500 กิโลกรัม |
| สิ่งอำนวยความสะดวก: | วางตัวควบคุม | โหมดแสดงส่วนสูง: | ดิจิตอล |
| เน้น: | Packaging drop test machine with large capacity,Heavy duty packaging impact tester,Drop test machine 1200mm height |
||
High Capacity 500kg Payload Packaging Drop Test Machine With Drop Height 1200mm
Auto Parts Packing Carton Packaging Drop Test Machine With ISTA Standard Specification
| Model | DT015 | DT020 | DT030 |
| Drop height(mm) | 0----1200 | 0----1200 | 0---1200 |
| Specimen weight(KG) | 150 | 200 | 300 |
| Specimen dimension(mm) | 1000*1000*1000 | 1200*1200*1200 | 1200*1200*1200 |
| Drop type | Free drop | ||
| Machine dimension(mm) | 1900*1700*2800 | 2100*1700*2800 | 2100*1700*2800 |
| Machine Weight(kg) | 2500 | 3200 | 4500 |
| Power supply | 3 phase AC380V 50HZ | ||
| Standards | ISO2248-72(E) GB/T4857.5 JISZ0202-87 IEC68-2-27 | ||
.
Functions and Features
1 With upper and lower displacement limit, safety and reliability;
2 Lifting height can be adjusted arbitrarily to meet the needs of different users;
3 Zero freely-drop test stand adopts the double-rail guiding device for stable and reliable lifting operation;
4 The freely-drop test stand can achieve the clamping fall tests for surface, edge and corners of specimen at different direction;
5 The machine is only needed to be placed on the flat marble or concrete ground for installation, without special foundation.
Labtone Service
| Pre-sales service: |
| Technical Advisory: Testing method, laboratory planning and advice |
| Equipment Selection: Type-selecting scheme,FAQ |
| Product testing scheme |
| Selling service: |
| Customer Communication,progress communication |
| Before installation, we will provide guidance of preparation , equipment debugging, equipment commissioning |
| Cooperate with measuring if need the third party verification |
| After-sale service: |
| Quality assurance period for one year,lifelong maintenance. |
| Technical guidance |
| Feedback within 2 hours after get the call. |
| Accept OEM,Design service,Buyer lable |

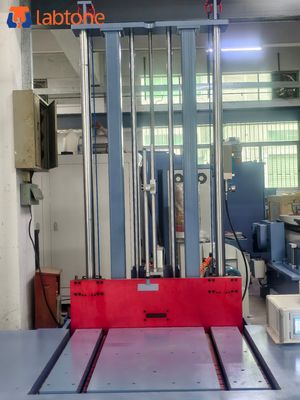

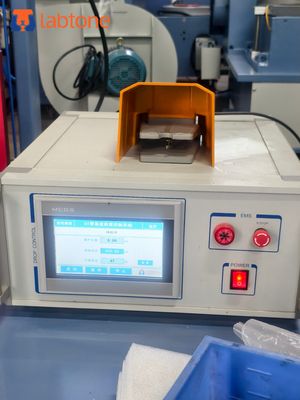

Detail Pictures
