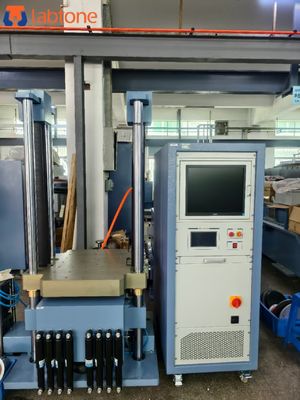

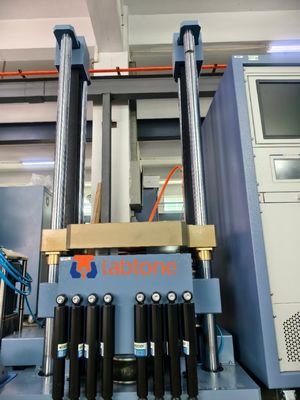

รายละเอียดสินค้า:
|
| รุ่น:: | SKM500E | Max. สูงสุด Payload: น้ำหนักบรรทุก:: | 50กก |
|---|---|---|---|
| ระยะความเร็ว:: | 5 ~ 120G | ขนาดโต๊ะ:: | 500*700มม |
| รูปแบบคลื่น:: | แรงฮาล์ฟไซน์ | ระยะเวลาของชีพจร:: | 6 ~ 18ms |
| ไฮไลท์:: | เครื่องทดสอบ Bump ขนาด 700 มม., เครื่องทดสอบ Bump Force Half Force, เครื่องทดสอบ Bump Payload | ||
| เน้น: | Electric Bump Test Machine,50kg Payload Bump Test Machine |
||
Specifications
| Model | SKM500 | SKM800 | SKM1000 | SKM1500 |
| Table size (mm) | 500*700 | 800*800 | 1000*1000 | 1500*1500 |
| Max. Payload (kg) | 50 | 200 | 500 | 1000 |
| Wave Form | Half Sine Wave | |||
| Acceleration Range (g) | 5~120 | 5~100 | 5~80 | 5~60 |
| Pulse duration(ms) | 6~18 | |||
| Bump repetition frequency(Hz) | 1~20 | 1~80 | ||
| Drop height range(mm) | 350 | 5~180 | ||
| Maximum acceleration variation(m/s) | 2.2 | 2.6 | 2.8 | |
| Machine dimension(mm) | 1250*950*1480 | 1550*1040*1550 | 1200*1150*860 | 1600*1650*1200 |
| Machine weight(kg) | 2200 | 2900 | 3660 | 6500 |
| Power & Air Supply | AC220V±10% 50Hz Air supply(8kg 23m3 gasholder) | |||
| Standards | GB/T2423.4 GB/T2423.6 IEC68-2-29 JJG497-2000 JIS C0042-1995 etc | |||
FAQ
1. How to you attach the hardware you're testing to your shaker?
By means of a fixture, usually aluminium or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
2. How do you control shakers?
If we're looking for resonances in the product we're testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies. But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously. Control commands go into the keyboard of a specially programmed computer.
3. What are those resonances? Are they bad?
Have you ever noticed the steering wheel moving with rather a large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There's a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure. When we shake an automotive or ship orland vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components and the PWB.
