Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory

Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory
Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory

ภาพใหญ่ :  Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory

รายละเอียดสินค้า:
สถานที่กำเนิด: จีน
ชื่อแบรนด์: LABTONE
ได้รับการรับรอง: CE, ISO
หมายเลขรุ่น: EV1005
การชำระเงิน:
จำนวนสั่งซื้อขั้นต่ำ: 1
ราคา: สามารถต่อรองได้
รายละเอียดการบรรจุ: กล่องไม้อัดบรรจุสูญญากาศ
เวลาการส่งมอบ: 30-60 วัน
เงื่อนไขการชำระเงิน: t/t
สามารถในการผลิต: 50 ชุด / เดือน

Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory

ลักษณะ
ระบบโมเดล:: EV1005 Max. สูงสุด Acceleration: การเร่งความเร็ว:: 30 กรัม
สูงสุด ความเร็ว:: 1.6 ม./วินาที แรงสุ่ม:: 550 นิวตัน (55กก.ฉ)
การกำจัด:: 20 มม. วิธีการระบายความร้อน:: อากาศเย็นลง
ไฮไลต์:: บริการทดสอบการสั่นสะเทือนระบบเครื่องปั่นการสั่นสะเทือนอุปกรณ์ทดสอบการสั่นสะเทือน
เน้น:

electrodynamic vibration shaker for laboratory

,

minitype vibration test system

,

standard vibration shaker for teaching

Minitype Vibration Test System



Description

With light weight, small volume, convenient to move,ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.



Product Application

Minitype Vibration Test System

With light weight, small volume, convenient to move, ET series standard vibration table is widely used in the acceleration sensor calibration; vibration test, fatigue test and mechanical impedance test of micro parts; at the same time, the ET series can also be used for teaching and scientific research and laboratory.

Vibration test is a process of exciting or shocking some part or device to observe its reaction in real environment. Vibration test is widely applied in many fields, ranging from circuit board, airplane, ship, rocket, missile, automobile, household appliance and other industrial products.

Labtone can offer you the whole vibration and testing proposal, and provide you with the quality certificates of products according to national and international standards, including GB, GJB, UL, JIS, DIN, ISO, BS, MIL, IEC and ASTM standards.

Features



  • Apply to the calibration of high precision vibration meter, mechanical impedance test, vibration analysis of the vibration source.
  • Apply to the vibration test of various small and lightweight parts such as sensor, electronic, electric machines and etc.
  • Apply to the basic test of vibration engineering of educational equipment.

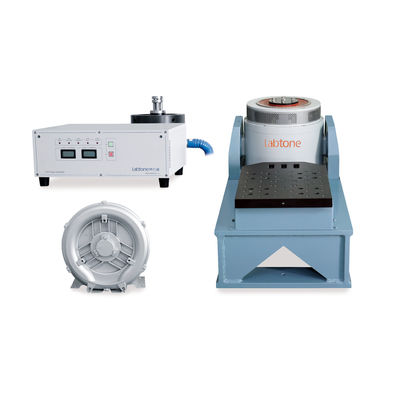

Equipment Configuration



Item Configuration Qty.
1. Vibration shaker
  ET30 Shaker 1 set
2. Digital switch power amplifier
  PA502E Power Amplifier 1 set
4. Attached accessories
  connecting line 1 set
  Operation instructions, inspection report, certificate, maintenance manual, etc. 1 set
  Special tools 1 set



Vibration Test Machine Specification:

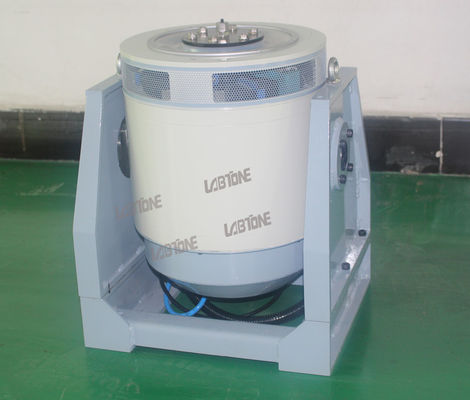

Electrodynamic shaker
Max. sine exciting force 55Kg.f peak (550N)
Frequency range 5~5000Hz (Larger frequencies are available)
Max. displacement 20 mm p-p
Max. velocity 1.6 m/s
Max. acceleration 30 G (300 m/s2)
Vertical load support 20 kg
Armature diameter Ф120 mm
Armature weight 1.7 kg
Over all Dimension 445mm L x 333mm D x 203mm H
Shaker weight 97 Kg
Cooling type Air Cooling by inner axial fan

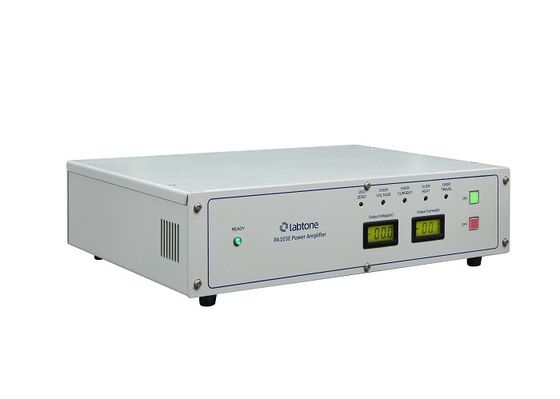

PA501EF Power Amplifier
Output power 900 VA
Amplifier cabinet dimension 430mm×200mm×500mm
Servo protection system
Functions: FUSE, OSC ZERO, OVER DISP, OVER VILTAGE, OVER CURRENT, OVER HEAT, EXT-TRIP, EXT-STOP
Vibration controller
Hardware configuration: 2-channel inputs, 1-channel outputs
Control computer 1 set
Function

Sine Control, Random Control

Language:English,Chinese

Operating system Microsoft Windows 7/8/10
Acceleration sensor LAB

Frequency range:1-12KHz

Sensitivity: 30 ±10 pC/g

Temperature range: -40℃ to 160℃

Head Expander VT40CM
Table size 400x400mm
Material Magnesium alloy
Frequency Up to 2000Hz
Electrical requirements:
Power supply AC 220V±10%, 50/60Hz, Single Phase, 900VA
Environment Requirements

Temperature: 0~40ºC

Relative Humidity: 0~80%, non-condensing





Vibration Test Machine Services



Presales:

  • Technical consultation: test method, laboratory planning and suggestion.
  • Equipment selection: selection scheme, FAQ.
  • Product testing scheme.



In-Sales:

  • Customer communication and progress report.
  • Guidance for pre-installation preparation, equipment commissioning and test run.
  • Calibration (when Third Party’s verification is required).

.



After-Sales Service

  • Training how to instal the machine, training how to use the machine.
  • Engineers available to service machinery overseas.

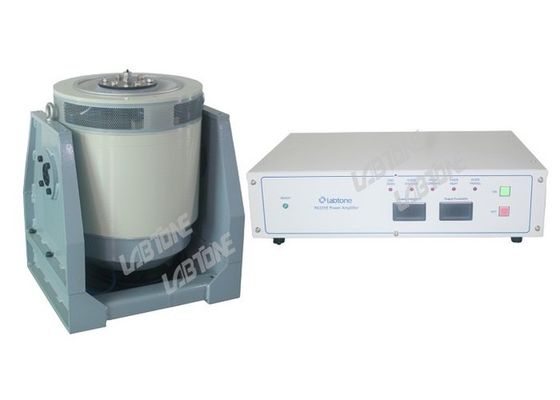

Detailed Pictures



Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory 0Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory 1Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory 2Minitype Standard Vibration Test System For Teaching And Scientific Research And Laboratory 3
