รายละเอียดสินค้า:
|
| ความถี่: | 5-100 เฮิรตซ์ | การกำจัด: | 0-3 mmp-p |
|---|---|---|---|
| ช่วงอัตราเร่ง: | 0-11g (สูงสุด) | สูงสุด น้ำหนักบรรทุก: | 130 กิโลกรัม |
| มิติตาราง: | 600 x 500 มม. | รูปคลื่น: | ไซน์ |
| เน้น: | low frequency mechanical shaker table,mechanical shaker table for electronics,5-100 Hz vibration test table |
||

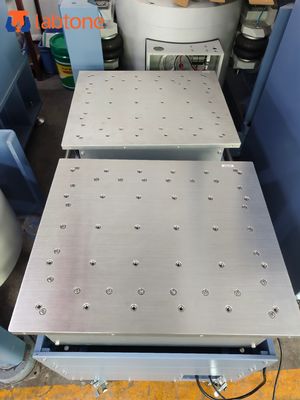

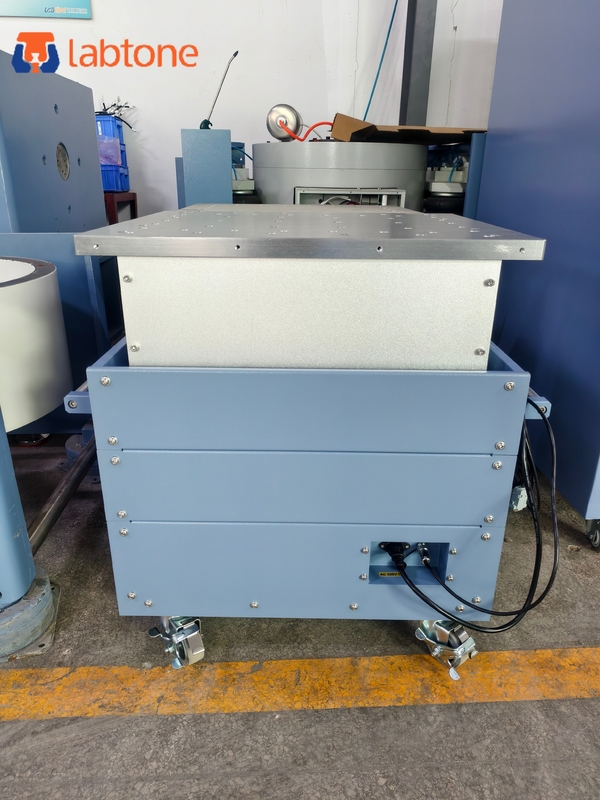

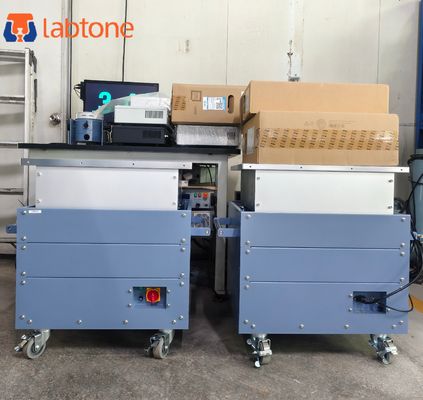

Mechanical Vibration Testing Machine For Electronic Components
Application
Mechanical vibration test machine applies to electronic products, components, module, mechanical and electrical products, instruments and meters and other transportation vibration simulation test. It meets the standards of GB, UL, IEC vibration test and reliability test.
Specifications
| Model | RV3000 |
| Table Size (L*W) | 600*500mm |
| Frequency Range | 5-50Hz |
| Amplitude Range(mmp-p) | 0-3 |
| Acceleration Range | 0-11G |
| Max.Payload(kg) | 130 |
| Control Interface | (compatible interface)IBM PC Serial port Rs232 9P/USB port |
| Test Method | Fixed frequency.sweep frequency(linear/logarithm),multi-stage random |
| Waveform | Sine Wave |
| Vibration Direction | Vertical |
| Power Supply | AC 220V/50Hz |
| Size(mm) | 765*525*690 |
| Weight(kg) | 250 |
Features
1, Using centrifugal excitation method, low mechanical noise.
2, Using synchronous reverse movement, excellent table evenness.
3, Stepless amplitude adjustment, meet different product test requirements.
4, Use-friendly operation control interface.
5, Fixed with shock absorption bags without special foundation.
FAQ
Are your company a trading one or a factory ?
Directly factory, more than 15 years focusing on test instruments field, 6 years exporting experience.
How do you attach the hardware you’re testing to your shaker?
By means of a fixture, usually aluminum or magnesium for lightness coupled with rigidity. They can be cast, or smaller fixtures machined from solid stock. Most fixtures are welded.
How do you control shakers?
If we’re looking for resonances in the product we’re testing, we command the shaker to shake the product at one frequency at a time but to vary that test frequency, to sweep it over a range of frequencies.But more realistically, we command the shaker to vibrate randomly and to excite all the resonances simultaneously.Control commands go into the keyboard of a specially-programmed computer.
What are those resonances?Are they bad?
Have you ever noticed the steering wheel moving with rather large displacement amplitude, larger than the input to the column? That magnification is called resonance. Possibly it annoys you. There’s a slight chance that in a few years that whipping of the steering column might cause bending fatigue failure.When we shake an automotive or ship or land vehicle instrument, we're looking for, for example, portions of printed wiring boards (PWBs) responding with greater motion than we're inputting. That flexing may damage PWB wiring, it may damage the attached components, and it will damage the soldered connections between components and the PWB.
