รายละเอียดสินค้า:
|
| ขนาดตาราง: | 1000*1000 มม. | เพย์โหลด: | 500 กิโลกรัม |
|---|---|---|---|
| รูปคลื่น: | ฮาฟไซน์พัลส์ | ช่วงอัตราเร่ง: | 5-80 กรัม |
| ระยะเวลาชีพจร: | 6-18ms | ความถี่ในการทำซ้ำ Bumo: | 1-80 |
| ทิ้งช่วงความสูง: | 5-180mm | การเปลี่ยนแปลงความเร็วสูงสุด: | 2.8m/s |
| เน้น: | Bump test machine with 120 shocks,Durable bump test machine NHIS-90,Mechanical testing machine EN 60069 |
||

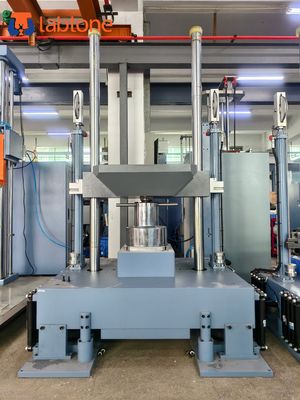

120 shocks per min Bump Shock Test Machine With NHIS-90, EN 60069 International Standard
Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipment
and other electronic electrician products during the transport or use which may be subjected to repeated shocks.
Bump testing machines can also be used to ensure a specimen reaches a satisfying design in structure, or as a means of quality control.
The test based on the specimen undergoing the standard pulse repeat shocking which is specified peak acceleration and duration.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Specifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Waveform | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Plus duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
