รายละเอียดสินค้า:
|
| ขนาดตาราง: | 1000*1000 มม. | เพย์โหลด: | 500 กิโลกรัม |
|---|---|---|---|
| รูปคลื่น: | ฮาฟไซน์พัลส์ | ช่วงอัตราเร่ง: | 5-80 กรัม |
| ระยะเวลาชีพจร: | 6-18ms | ความถี่ในการทำซ้ำ Bumo: | 1-80 |
| ทิ้งช่วงความสูง: | 5-180mm | การเปลี่ยนแปลงความเร็วสูงสุด: | 2.8m/s |
| เน้น: | Bump test machine for electronic devices,Mechanical shock testing machine 500kg,Bump test machine with payload control |
||

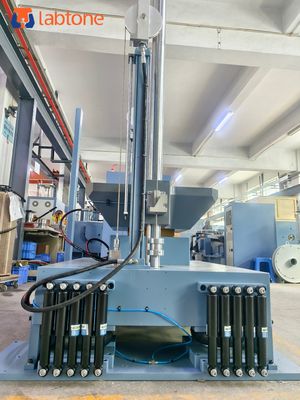

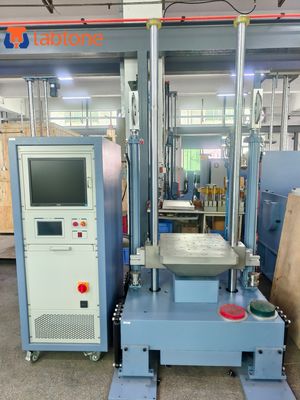

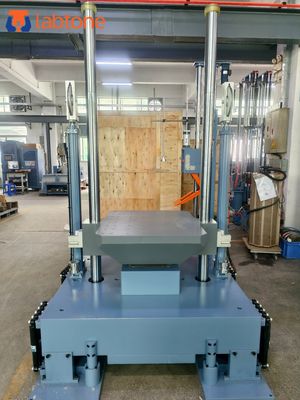

Mechanical Shock And Bump Tester Bump Test Machine Bump Testing Equipment
Excellent Durability Repetitive Mechanical Bump Testing Equipment product is suitable for components, equipment
and other electronic electrician products during transport or using which may be subjected to repeated shocks.
Bump testing machines can also be used to ensure a specimen reaches a satisfying design in structure, or as a means of quality control.
The test based on the specimen undergoing the standard pulse repeat shocking which is specified peak acceleration and duration.
Excellent Durability Repetitive Mechanical Bump Testing Equipment Speicifications
| Model | SKM500 | SKM700 | SKM800 | SKM1000 |
| Table size(mm) | 500*700 | 700*800 | 800*800 | 1000*1000 |
| Payload(kg) | 50 | 100 | 200 | 500 |
| Wave form | Half sine pulse | |||
| Acceleration range(G) | 5-120 | 5-100 | 5-100 | 5-80 |
| Pluse duration(ms) | 6--18 | |||
| Bump repetition frequency | 1-120 | 1-120 | 1-120 | 1-80 |
| Drop height range | 5-120mm | 5-120mm | 5-120mm | 5-180mm |
| Max velocity variation | 2.2m/s | 2.2m/s | 2.6m/s | 2.8m/s |
| Machine dimension(mm) | 750*660*880 | 900*900*800 | 900*960*800 | 1200*1150*860 |
| Machine weight(kg) | 1000 | 1260 | 2160 | 3660 |
| Power & Air supply | AC220V ±10% 50Hz Air supply:8kg 23m3 gasholder | |||
| Standards | GB/T2423.4,GB/T2423.6, IEC68-2-29, JJG497-2000, JISC0042-1995 etc | |||
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case,which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless,moisture corrosion, good transparency etc
