รายละเอียดสินค้า:
|
| ชื่อ: | ASTM D999-01 ระบบทดสอบการสั่นสะเทือนของแบตเตอรี่มาตรฐาน: การทดสอบไซน์, สุ่ม, การทดสอบแรงกระแทก | ไซน์: | 1100kg.f(10kN) |
|---|---|---|---|
| ทำให้ตกใจ: | 2200kg.f(22kN) | แอมพลิจูด: | 51 มม. |
| ความเร็วสูงสุด: | 2.0m/s | วิธีการระบายความร้อน: | อากาศเย็น |
| ไฮไลต์:: | เครื่องทดสอบการสั่นสะเทือน 1 3000 Hz ระบบทดสอบการสั่นสะเทือนที่แม่นยำสูง ระบบทดสอบการสั่นสะเทือนอินพ | ||
| เน้น: | ASTM D999-01 vibration test system,battery vibration test equipment,sine random shock test system |
||

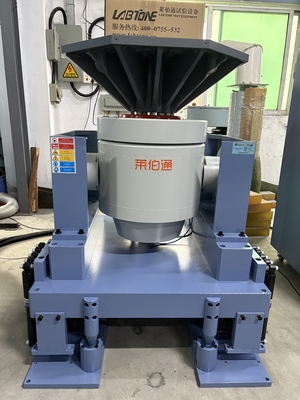

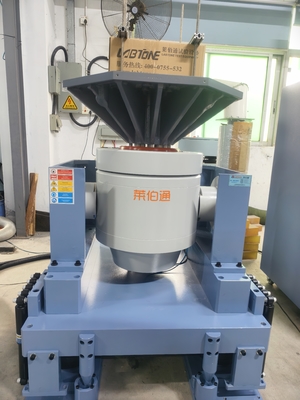

Vibration Test System Description
A complete set of vibration testing system is composed of the shaker, power amplifier and vibration measuring control system, in accordance with the relevant national and international standards (such as MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS, etc.) to provide technical support for establishing product quality inspection
| Item | Configuration | Qty. |
| A | Vibration shaker | |
| A11S24 shaker ((including Pneumatic Centering Controller) | 1 set | |
| B402S blower (including silencer and Duct ) | 1 set | |
| Horizontal slip table HG50M | 1 set | |
| Head Expander VT50CM | 1 set | |
| B | Power Amplifier | |
| LA10K power amplifier(including Field power supply) | 1 set | |
| C. |
Vibration Controller-Vcs-2 (Including Hardware and Control Functions Program software CDS |
|
| Accelerometer (Including Length 7m low noise BNC-M5 cable) | 1 set | |
| Computer(Including keyboard, mouse and monitor) | 0 set | |
| D |
Documentation Operation Manual, Test Report, Packing List |
1 set |
| E | Accessories | |
| Maintenance Tools | 1 set | |
| Standard Spare Parts | 1 set |
| Shaker Specifications | |
| Peak Sine (Pk) | 1100Kg.f peak (11KN) |
| Random (RMS) | 1100Kg.f rms (11KN) @ISO5344 |
| Shock (Pk) | 2200Kg.f peak (22KN) @6ms |
| Usable Frequency | DC～3300Hz |
| Maximum Displacement (p-p) | 51mm (2inch) |
| Max. velocity | 2m/s |
| Max. acceleration | Sine:100g (980 m/s2)；Random: 60G (588 m/s2) |
| Vertical Load Support | 300 kg@0.7 MPa |
|
Body Suspension Natural Frequency (Thrust Axis) |
Less than 2.5 Hz |
| Armature Diameter | Ф240 mm |
| Armature Weight | 11kg |
|
Fundamental Resonance Frequency (Bare table) |
2,600 Hz (nom.) +/- 5% |
|
Load Attachment Points (Standard) |
16 stainless steel M10 Inserts |
| Stray Flux Density | ＜10gauss |
| Shaker dimensions | 885X745x785mm |
| Weight of Shaker | 1300kg |
| Power Amplifier Specifications LA10K | |
| Rated Output Capacity | 10KVA |
| Signal to Noise Ratio | Greater than 65 dB |
| Amplifier Efficiency | Greater than 90% |
| Amplifier Overall Dimensions | 615mmL×920mmD×1520mmH |
1) The rugged suspension system and linear motion guiding, strong carrying capacity, good guiding functions, high stability.
2) Load center airbag with high static stiffness and low dynamic stiffness, strong carrying capacity, perfect performance on amplitude variation.
3) High-efficiency D class power switching, 3-sigma peak current, low power consumption, and minimum harmonic distortion.
4) Quick self-diagnosis with safety interlock, high safety reliability
5) Airbag shock isolation device for vibration platform without the need of additional foundation, perfect reproduction of vibrational wave and reduction in vibration transmittance
6) Horizontal and vertical expansion platforms for different applications
7) Simple controller operation
* Technical consultation: test method, laboratory planning and suggestion.
* Equipment selection: selection scheme, FAQ.
* View our Factory.
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.

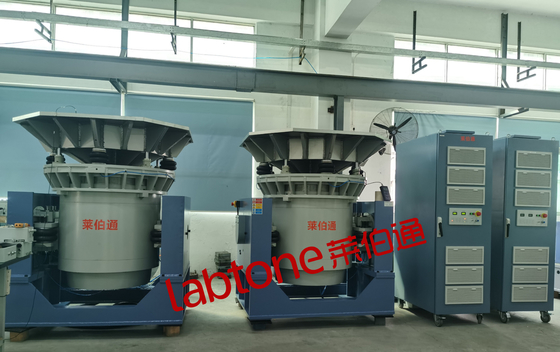

Ready Machine:
