รายละเอียดสินค้า:
|
| ชื่อสินค้า: | เครื่องเขย่าสั่นสะเทือนแบบไดนามิก | ช่วงความถี่: | 1-3000Hz |
|---|---|---|---|
| แรงไซน์สูงสุด: | 1,000กก | การกระจัดสูงสุด: | 50.8มม. ต่อปอนด์ |
| สูงสุด การเร่งความเร็ว: | 100 กรัม | สูงสุด ความเร็ว: | 200ซม./วินาที |
| โหลดสูงสุด: | 300กก | ||
| เน้น: | aerospace vibration test system,optoelectronics vibration testing equipment,high-performance vibration test machine |
||

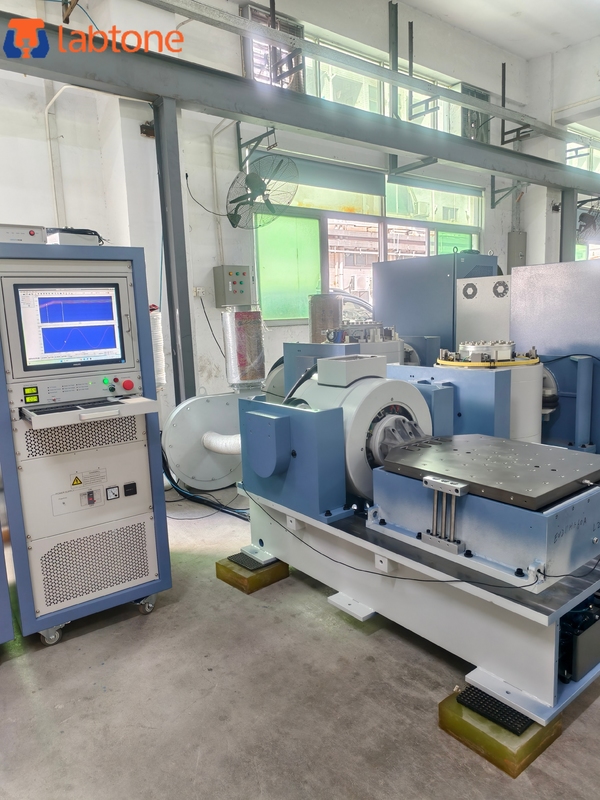

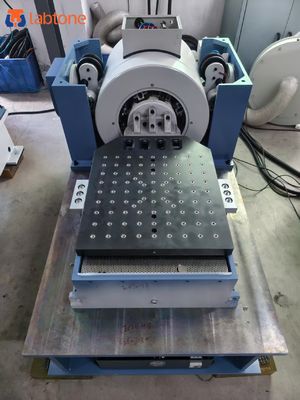

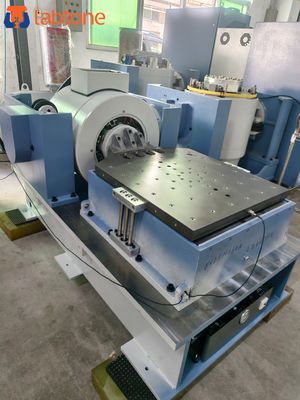

Dynamic Vibration Shaker Machine For LED Display Devices Vibration Testing
Applicable Standards: MIL-STD, DIN, ISO, ASTM, IEC, ISTA, GB, GJB, JIS, BS etc.
Applicable Industries: Automotive, Electronics, Aerospace, Vessel, Telecommunication, Optoelectronics, Instrument etc.
Specifications: EV203-EV220
| Model | EV203 | EV206 | EV210 | EV220 |
| Vibration Generator | VG300/40 | VG300/50 | VG1000/50 | VG2000/50 |
| Frequency(Hz) | 2-2500 | 2-3000 | 2-3000 | 2-2500 |
| Max Exiting Force(kg.f) | 300 | 600 | 1000 | 2000 |
| Max. Displacement (mmp-p) | 40 | 50.8 | 50.8 | 50.8 |
| Max. Acceleration(g) | 100 | 100 | 100 | 100 |
| Max. Velocity(cm/s) | 200 | 200 | 200 | 200 |
| Payload(kg) | 120 | 200 | 300 | 400 |
| Armature Mass(kg) | 3 | 6 | 10 | 20 |
| Armature Diameter(mm) | φ150 | φ200 | φ240 | φ320 |
| Cooling Method | Forced Air Cooling | |||
| Vibration Generator Weight(kg) | 460 | 920 | 1100 | 1600 |
| Vibration Generator Dimension L*W*H(MM) | 750*555*670 | 800*600*710 | 845*685*840 | 1200*870*1100 |
| Power Amplifier | Amp3k | Amp6k | Amp12k | Amp22k |
| Cooling Method | Forced Air Cooling | |||
| Power Amplifier Weight(kg) | 250 | 320 | 350 | 500 |
| Power Amplifier Dimension L*W*H(MM) | 800*550*1250 | 800*550*1250 | 800*550*1520 | 800*550*1520 |
| Utility Requirements |
3-phase AC380V ±10% 50Hz | |||
| Aggregate Capacity(KW) | 9 | 20 | 25 | 35 |
Features:
Pre-Sales Service
1)Technical consultation: test method, laboratory planning and suggestion.
2)Equipment selection: selection scheme, FAQ.
3)Product testing scheme.
4)Customer communication and progress report.
After-Sales Service
1)Technical training: operation of equipment, daily maintenance, common fault diagnosis and troubleshooting.
2)Scheduled on-site service: Detection of problem as soon as possible in order to eliminate equipment and anthropogenic hazards. This is to ensure long term and stable equipment operation as well as delivery of latest technical information.
3)Technical support: special paid services are provided according to customer’s needs.
Product Details
