รายละเอียดสินค้า:
|
| รุ่น:: | HSKT30 | ขนาดโต๊ะ:: | 510 x 510 |
|---|---|---|---|
| ตัวอย่างน้ำหนักสูงสุด (กิโลกรัม):: | 10 | ชีพจรช็อต:: | ครึ่งไซน์ |
| ช่วงการเร่งความเร็ว (M/S2):: | 20 ---- 30000 | ช่วงระยะเวลาพัลส์ (MS):: | 0.2~11 |
| ไฮไลท์:: | การทดสอบช็อตและดร็อปอุปกรณ์ทดสอบเชิงกล | ||
| เน้น: | Half Sine Shock Test System,30000g Acceleration Shock Test System,Batteries Shock Test System |
||
Product description

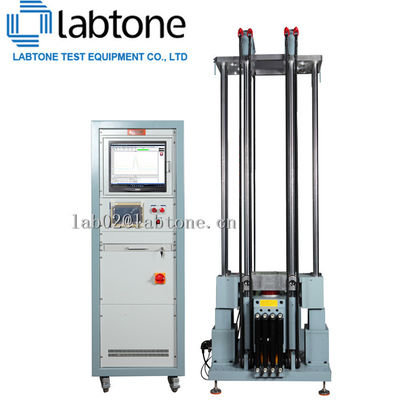

HSKT is the best Shock Machine to make sure the product, smartphones, tablets, computers and others mobiles can withstand shock. Apply high acceleration to computer's parts, Batteries , smart phones, tablets, laptop, cellular phones, and mobile products for product fragility test.
The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
System Specifications
This section includes the system specifications, system performance, and shock capabilities.
| Model | G-HSKT30 |
| Table size | 300 mm x 300 mm |
| Base weight | 550kg |
| Table weight | 40kg |
| Machine weight | 1680kg |
| Max. Specimen weight | 30kg |
| Maximum Duration | 11ms |
| Minimum Duration | 0.2ms |
| Lowest Drop Height | 10mm |
| Highest Drop Height | 1500mm |
System Performance
| Model | G-HSKT30 |
| Half sine | |
| Max.velocity | 18.6m/s |
| Max. acceleration | 10000g |
| Max. Specimen weight | 30kg |
| Model | DMSA150 |
| Duration range | 0.06ms~0.3ms |
| Max. Velocity change | 25m/s |
| Max. acceleration | 35000g |
| Max. Specimen weight | 6kg |
| Model | HSKT10 | HSKT10D | G-HSKT15 | G-HSKT30 | G-HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
|
Max. Payload (kg) |
10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) |
20~2000 (bare table) |
20~10000 (bare table) |
20~15000 (bare table) |
20~30000 (bare table) |
20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 | |||
