รายละเอียดสินค้า:
|
| รุ่น:: | HSKT30 | ขนาดโต๊ะ:: | 250 x 250 |
|---|---|---|---|
| ตัวอย่างน้ำหนักสูงสุด (กิโลกรัม):: | 10 | ชีพจรช็อต:: | ครึ่งไซน์ |
| ช่วงการเร่งความเร็ว (M/S2):: | 20 ---- 35000 | ช่วงระยะเวลาพัลส์ (MS):: | 0.2~11 |
| ไฮไลท์:: | การทดสอบช็อตและดร็อปอุปกรณ์ทดสอบเชิงกล | ||
| เน้น: | High Acceleration Shock Test System,Smart Phones Shock Test System,Batteries Shock Test System |
||
Product description

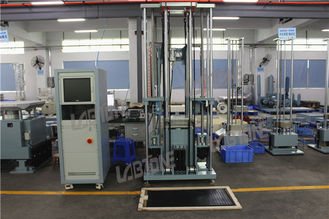

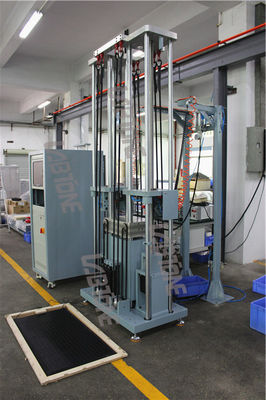

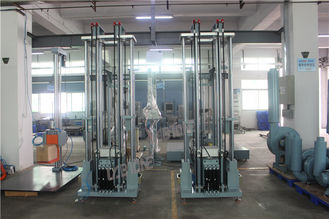

HSKT is the best Shock Machine to make sure the product, smartphones, tablets, computers and others mobiles can withstand shock. Apply high acceleration to computer's parts, Batteries , smart phones, tablets, laptop, cellular phones, and mobile products for product fragility test.
The equipment conforms to such testing specifications as GB/T2423-2008, GJB150, GJB360, GJB548, GJB1217, MIL-STD-202F, IEC-68-2-27, MIL-STD-810F, MIL-STD-883E, etc.
Feature
Maximum acceleration : 35000G
Vibration insulation seismic base apply machine to various environment.
The pneumatic braking system and electric lift system enable precise drop repeatability
A half sine shock pulse can be generated to produce a required pulse duration by replacing the shock pads
| Model | HSKT10 | HSKT10D | G-HSKT15 | G-HSKT30 | G-HSKT35 |
| Table Size(mm) | 200 x 250 | 300 x 300 | 250 x 250 | 250 x 250 | 250 x 250 |
Max. Payload (kg) | 10 | 25 | 10 | 10 | 10 |
| Shock Pulse | Half Sine Wave | ||||
| Acceleration Range(G) | 20~2000 (bare table) | 20~10000 (bare table) | 20~15000 (bare table) | 20~30000 (bare table) | 20~35000 (bare table) |
| Pulse Duration(ms) | 0.2~18 | 0.1~11 | |||
